Carpentry & Craft — Field Notes
A close reading of one of the oldest tools on the job site, and why it still earns its place in both framing crews and fine woodworking shops.
Content
- 1 Direct Answer: What a Framing Square Is Used For
- 2 Anatomy of a Framing Square
- 3 Framing Square Uses in Construction
- 4 Framing Square Uses in Woodworking
- 5 Construction vs. Woodworking: A Side-by-Side Comparison
- 6 How to Read and Use the Rafter Tables
- 7 Choosing Between Steel and Aluminum
- 8 Checking a Framing Square for Accuracy
- 9 Final Takeaway
Direct Answer: What a Framing Square Is Used For
A framing square is used primarily to mark and verify 90-degree angles, lay out roof rafters, calculate stair stringers, and check that lumber and building components are square during construction. In woodworking, the same tool shifts roles slightly — it becomes a precision reference for marking perpendicular cut lines, checking joinery accuracy, and confirming that cabinet frames or furniture assemblies sit true. The core function never changes: a steel framing square gives builders and woodworkers a fixed, reliable 90-degree reference that a tape measure or a flexible square simply cannot guarantee over long spans.
What separates construction use from woodworking use is scale and precision tolerance. On a job site, a carpenter uses the square across two-by-four framing, roof trusses, and deck ledgers where a margin of a millimeter rarely matters. In a woodworking shop, that same square — or a smaller version of it — is used where accuracy to a fraction of a degree affects how a drawer front seats or how a mortise-and-tenon joint closes.
Anatomy of a Framing Square
Before comparing its two main uses, it helps to understand the tool itself. A standard carpenter square tool is an L-shaped, flat piece of metal made up of two arms: the body (or blade), typically 24 inches long and 2 inches wide, and the tongue, typically 16 inches long and 1.5 inches wide. These two arms meet at a precise 90-degree angle, which is the foundation of nearly every function the tool performs.

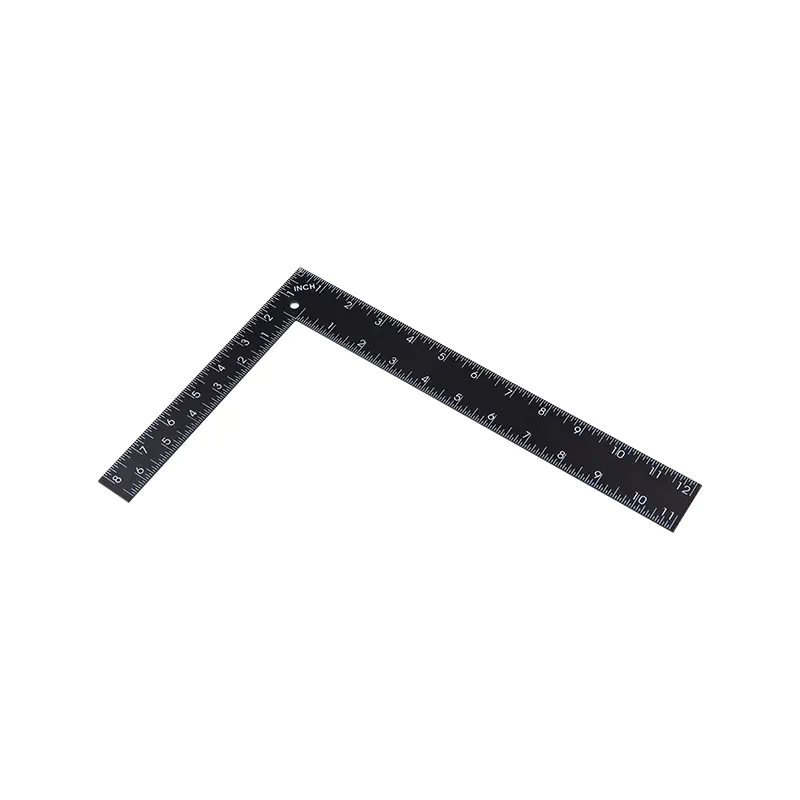

framing square
Most squares are stamped with several reference tables directly on the metal surface, which is what makes the tool far more than a simple right-angle guide:
- Rafter tables for calculating common, hip, valley, and jack rafter lengths
- The Essex board measure table for calculating lumber board footage
- An octagon scale for laying out eight-sided posts or columns
- A brace measure table for calculating diagonal brace lengths
A steel carpenter square is the most common material choice because steel resists warping under job-site conditions — humidity, temperature swings, and rough handling. Aluminum versions exist and are lighter, but they are more prone to bending if dropped or stepped on, which compromises the exact 90-degree angle the tool depends on.
Framing Square Uses in Construction
On a construction site, a framing square earns its name because it is used constantly during the framing phase of a build — walls, floors, and especially roofs.
Roof Rafter Layout
This is arguably the single most important job-site function. By aligning the rafter table numbers on the tongue and body with the edge of a rafter board, a carpenter can mark the birdsmouth cut, ridge cut, and tail cut for a specific roof pitch without a calculator. For a 6:12 pitch, for example, the square is set so the 6-inch mark on the tongue and the 12-inch mark on the body both align with the rafter's edge, giving an exact angle every time.
Stair Stringer Layout
Stair building depends on repeatable, identical rise and run measurements across every step. Carpenters clamp stair gauges onto the square at the rise and run numbers, then walk the square down the stringer board, marking each step in the same position. A typical residential stair uses a 7-inch rise and 10-inch run, and the framing square makes those marks consistent to within a fraction of a degree, step after step.
A framing square doesn't just mark a line — it carries the memory of every angle a roof or stair needs, stamped directly into the steel.
Squaring Walls and Foundations
Before sheathing goes on a wall frame, builders check that the corner between the top and bottom plates and the studs is a true 90 degrees. While large foundations often use the 3-4-5 triangle method with a tape measure, a framing square is used for quick spot checks on smaller sections, door and window openings, and deck framing corners.
Marking Cut Lines on Dimensional Lumber
Hooking the tongue over the edge of a two-by-four and marking along the body gives an instant, accurate perpendicular line for a circular saw cut — faster than a speed square for boards wider than a few inches, since the longer body spans more of the material.
Framing Square Uses in Woodworking
In a woodworking shop, the demands shift from speed on rough lumber to precision on finished stock. The framing square remains relevant, but it is used more as a verification and layout tool than a primary marking tool for every cut.
Checking Cabinet and Furniture Squareness
After assembling a cabinet box, drawer, or picture frame, woodworkers place the framing square into each inside corner to confirm there's no gap between the square's edge and the joint. A visible gap on one side means the assembly is racked out of square and needs adjustment before glue sets.
Laying Out Joinery
For larger joinery work — long dado cuts across a wide panel, or reference lines on plywood sheet goods — the extended length of a framing square's body reaches across material that a 6-inch combination square cannot span in a single mark, reducing the risk of a line drifting out of true partway across the board.
Verifying Machine Setup
Woodworkers also use the square to check that a table saw fence or a miter saw fence sits at true 90 degrees relative to the blade before starting a cutting session, since even small drift in machine alignment compounds across multiple parts.
Info
For fine joinery, pair the framing square's long-reach layout with a smaller combination square for final verification — the two tools solve different problems.
Construction vs. Woodworking: A Side-by-Side Comparison
The table below summarizes how the same tool changes role depending on the setting.
| Aspect | Construction Use | Woodworking Use |
|---|---|---|
| Primary Role | Rafter and stair layout, marking cuts | Verifying squareness, joinery reference |
| Material Worked On | Dimensional lumber, plywood sheathing | Finished stock, plywood, cabinet parts |
| Precision Tolerance | Fraction of an inch acceptable | Fraction of a degree matters |
| Typical Companion Tools | Speed square, chalk line, level | Combination square, marking gauge |
| Preferred Material | Steel, for job-site durability | Steel or aluminum, depending on weight preference |
How to Read and Use the Rafter Tables
The rafter tables stamped on the face of the body are one of the more intimidating features for beginners, but the logic is straightforward once broken down. Each row in the table corresponds to a roof pitch, expressed as inches of rise per 12 inches of run. The numbers in that row give:
- Length of common rafters per foot of run
- Length of hip or valley rafters per foot of run
- Difference in length of jack rafters spaced 16 or 24 inches on center
- Side cut angles for hip and valley rafters
A carpenter multiplies the per-foot value by the total run of the roof to get the exact rafter length before making a single cut, which reduces material waste and keeps the roofline consistent across every rafter in the structure.
Warning
Rafter table figures assume the square's arms are perfectly true. A bent or damaged square will silently throw off every rafter length calculated from it.
Choosing Between Steel and Aluminum
Material choice affects both durability and comfort of use, especially for tradespeople carrying the tool all day.
A steel framing square typically weighs between 1.5 and 2 pounds and holds its exact angle even after years of job-site abuse, which is why it remains the standard choice for framing crews. Aluminum versions weigh roughly 30–40% less, making them appealing for woodworkers or DIYers who prioritize comfort over maximum rigidity, but they're more susceptible to bending if the square is dropped onto a hard surface or used as a prying tool.
For anyone buying their first square, a mid-weight steel carpenter square with clearly stamped, high-contrast markings offers the best balance of longevity and readability, particularly in low-light job-site conditions.
Good to Know
Steel squares with etched (not just printed) markings resist fading from years of sun exposure and handling far better than painted-on scales.
Checking a Framing Square for Accuracy
Because so much layout work depends on the tool's exact 90-degree angle, periodic accuracy checks matter. A simple test: draw a straight line on a flat panel, place the square's body along the line with the tongue extending upward, and mark along the tongue. Flip the square over, align the body with the same line again, and see if the tongue lines up with the mark.
Danger
Any visible gap in this test means the square has been knocked out of true. Continuing to use it will compound small errors into major misalignments across an entire roof or staircase.
Final Takeaway
Whether on a framing crew or in a home workshop, the value of a carpenter square tool comes down to one thing: a dependable, unchanging 90-degree reference that no tape measure or eyeballed line can match. Construction work leans on its rafter tables and stair-layout capability, while woodworking leans on its role as a verification tool for squareness and joinery. Either way, investing in a well-made steel framing square pays off across years of consistent, accurate work.
