What a Sliding T Bevel Is Used for in Woodworking
Wood rarely meets the world at ninety degrees. This is the tool that lets a craftsman work with the angle in front of them — not the one they wish they had.
Direct Answer: The Core Purpose in Woodworking
A sliding T bevel is used in woodworking primarily to capture, transfer, and replicate angles that are not 90 degrees. As a sliding t bevel tool, its adjustable blade pivots and locks at any angle, allowing a woodworker to copy an angle from an existing piece, a structural element, or a drawing, and then reproduce that exact angle on a new workpiece. This makes it indispensable for tasks such as fitting irregular joints, marking miters, laying out dovetails, matching furniture angles, and setting saw blade tilts to non-standard degrees.
Its value lies not in reading a degree number off a scale, but in physically holding the angle so it can be walked from one board to another without measurement error creeping in.
In practical terms, whenever a woodworking project involves an angle that must match something else exactly, rather than simply being square, the sliding T bevel is the tool that gets reached for.
Why Woodworkers Rely on This Tool
Wood rarely behaves in perfect right angles once a project moves beyond basic box construction. Walls settle out of square, old furniture develops splayed legs by design, and staircases, roofs, and decorative trim all depend on angles specific to the structure they belong to. A standard square cannot record these variations, but a sliding T bevel can be set to match any of them in seconds.
Key Advantages Over Fixed-Angle Tools
- Captures any angle from 0 to 180 degrees without needing a calculator or protractor.
- Transfers the angle directly, eliminating rounding errors that occur when converting to a degree value and back.
- Works on curved, irregular, or out-of-square surfaces where a fixed square provides no useful reference.
- Small and portable enough to carry between a job site and a workshop bench.
This combination of flexibility and accuracy is why the tool remains a staple in both hobbyist workshops and professional joinery shops, even in an era of digital angle finders.
Common Sliding T Bevel Use Cases in Woodworking
The range of tasks suited to this tool is broad, but a handful of applications appear repeatedly across furniture making, cabinetry, and carpentry. Understanding these use cases helps clarify exactly when reaching for a bevel makes more sense than any other measuring tool.

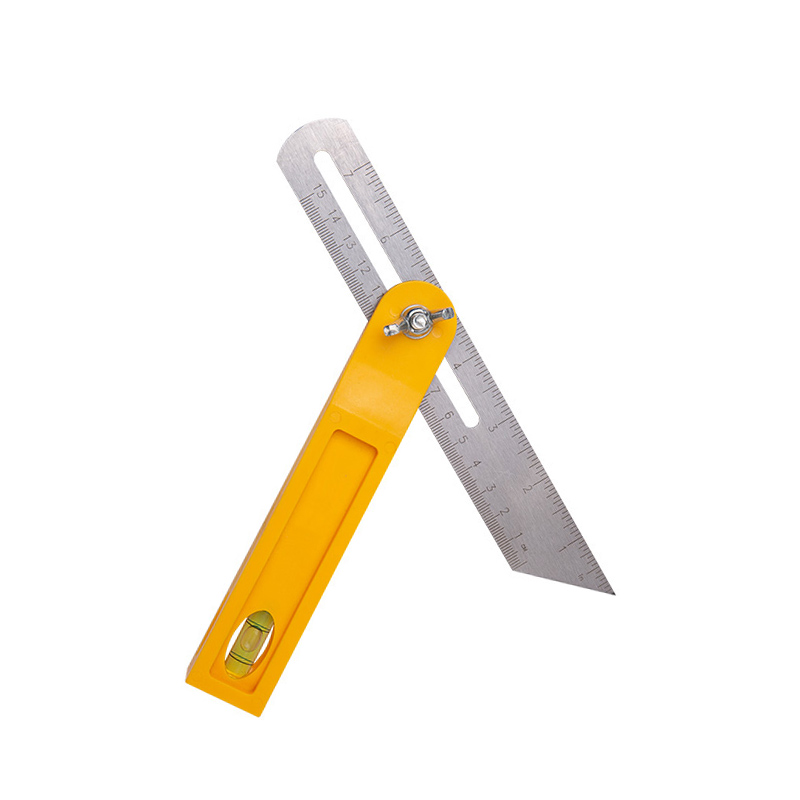

sliding T bevel
Transferring Angles Between Workpieces
The most fundamental sliding t bevel use is copying an angle from one board and applying it to another. A woodworker might set the blade against an existing chair leg, lock it, then move to a fresh blank and mark the identical angle for a replacement leg. This process avoids the compounding errors that can occur when an angle is measured, written down as a number, and then reset on a protractor.
Marking Miters and Angled Joints
Picture frames, box corners, and trim work often require miters that are close to 45 degrees but not always exact, particularly when a wall or frame opening is slightly out of square. By setting the bevel against the actual corner rather than assuming a standard angle, a woodworker can mark a miter that closes perfectly, even when the surrounding structure is imperfect.
Laying Out Dovetails
Traditional dovetail joints are cut at a consistent slope, commonly around 1:6 to 1:8 depending on the wood species and intended use. Many woodworkers set a sliding T bevel to the desired dovetail angle once, then use it to mark every pin and tail across an entire project, ensuring the slope remains identical from joint to joint.
Setting Table Saw and Miter Saw Angles
When a project calls for a bevel cut that matches an existing angle rather than a round number like 30 or 45 degrees, the bevel can be set against the reference surface and then used to dial in the saw blade tilt precisely, without relying on the saw's built-in degree scale, which can drift out of calibration over time.
Matching Furniture Repairs and Reproductions
Restorers frequently use this tool to record the splay angle of legs, the rake of a chair back, or the taper of a table apron on an antique piece, so a reproduction or replacement part matches the original design exactly rather than approximating it.
Comparing Sliding T Bevel Applications
The table below outlines several woodworking scenarios and how the tool applies to each, giving a quick reference for when it is the right choice on a project.
| Project Type | Typical Angle Task | Why the Bevel Helps |
|---|---|---|
| Picture frames | Marking corner miters | Matches slightly irregular corners exactly |
| Dovetail joinery | Setting a consistent slope | Keeps every pin and tail identical |
| Chair and table repair | Copying leg splay angle | Reproduces original design accurately |
| Trim and molding | Marking out-of-square corners | Compensates for wall irregularities |
| Cabinetry | Setting saw blade tilt | Provides a physical reference more reliable than a worn scale |
How to Use a Sliding T Bevel Step by Step
Correct technique matters as much as the tool itself. A sliding T bevel is only as accurate as the care taken while setting and transferring the angle, so following a consistent process reduces the chance of small errors compounding across a project.
- Loosen the locking screw so the blade moves freely within the stock.
- Press the stock firmly against the reference surface whose angle needs to be captured.
- Rotate the blade until it lies flush against the second surface forming the angle.
- Tighten the locking screw carefully, watching for any last-second shift in the blade.
- Move the tool to the new workpiece, keeping the stock flush against a matching reference edge.
- Mark along the blade with a pencil or marking knife to transfer the angle precisely.
Good Practice
Testing the setting on a scrap offcut before cutting the actual project piece is a habit shared by most experienced woodworkers, since it catches errors before material is wasted.
Pairing the Bevel With Other Layout Tools
While the sliding T bevel excels at transferring angles, it is often paired with a protractor head or digital angle gauge when the actual degree value needs to be known, rather than simply copied. Attaching the bevel to a protractor base allows a woodworker to read off the angle in degrees, which is useful for documenting a design, communicating specifications to another craftsperson, or programming a CNC router.
Info
Used together, these tools cover both the practical transfer of angles on the bench and the numerical precision needed for planning and record-keeping. A marking gauge and a sharp pencil or knife typically complete the toolkit, since the bevel only sets the angle, while these secondary tools translate that angle into a visible line on the wood ready for cutting.
Maintaining Accuracy Over Time
Like any precision tool, a sliding T bevel loses accuracy if its pivot joint wears loose or its blade develops rust or burrs along the edge. Wiping the blade down after use, applying a light coat of oil to prevent corrosion, and checking the pivot for play every few months keeps the tool performing reliably for years. A blade that wobbles even slightly at the pivot can introduce an error of a degree or more, which is enough to visibly open a gap in a tight miter or dovetail joint.
Signs a Bevel Needs Attention
- The blade shifts slightly when the locking screw is tightened.
- Visible play or wobble at the pivot point when the blade is moved gently.
- Rust spots or rough patches along the blade edge that catch on the pencil line.
- A stock that no longer sits flush against a known-flat reference surface.
Caution
Replacing a worn bevel is inexpensive compared to the material wasted from repeated angle errors, so most professional shops treat it as a routine tool upgrade rather than an unusual expense.
Bringing It All Together
Across furniture making, cabinetry, trim carpentry, and restoration work, the sliding T bevel earns its place on the bench by solving a problem no fixed-angle tool can: capturing and reproducing an angle exactly as it exists in the real world, rather than as a rounded number. Whether the task is matching an antique chair leg, cutting a miter that closes cleanly against an imperfect wall, or keeping dovetail slopes consistent across dozens of joints, this tool remains one of the most practical instruments a woodworker can own. For any project where angles must match something specific rather than simply be square, the sliding T bevel is the tool built for exactly that job.
